Choosing a beam clamp looks simple until you start comparing products from different suppliers.
A steel beam clamp, 3/8 beam clamp, strut beam clamp or malleable iron beam clamp may look very similar in a product photo. Differences in thread size, flange range, jaw opening, material, surface finish and application requirements can still make them completely different products.
For buyers, importers and distributors, the useful question is not only “What size beam clamp do I need?” It is: “Will this beam clamp fit my beam, threaded rod and intended support application?”
Y.F METAL manufactures beam clamps in Handan, Hebei, China. This guide explains the points that should be confirmed before ordering beam clamps from China.
What Is a Beam Clamp?
A beam clamp is a mechanical attachment that connects a support or suspension system to the flange of a structural steel member. Depending on its design, it can be used for pipe support, HVAC support, electrical installation, cable tray, conduit support, threaded-rod suspension, MEP systems and other industrial support systems.
Different applications require different clamp designs. Select the clamp from the actual installation requirements, not from appearance alone.
Steel Beam Clamp vs. Malleable Iron Beam Clamp
Steel beam clamp is a common search term, but not every beam clamp is made from the same material or by the same process. Some products use formed or stamped steel; others use malleable iron. A stamped steel body has a different geometry and manufacturing process from a malleable iron casting.
When comparing products, check the material, manufacturing process, thread size, jaw opening, flange-thickness range, overall dimensions, finish, and the allowable load required for the intended support application. The right choice depends on the actual installation rather than a similar-looking photograph.
For product examples, compare our malleable iron 3/8-inch beam clamp, pressed steel beam clamp and wide-jaw beam clamp against your drawing and installation details.
What Does “3/8 Beam Clamp” Mean?
3/8 beam clamp and beam clamp 3/8 are frequent buyer searches. In many cases, 3/8 inch refers to the threaded-rod connection. It is not a complete product specification.
Two 3/8 beam clamps can have different jaw openings, maximum flange thicknesses, body dimensions, materials, thread details, finishes and allowable loads. For a useful quotation, provide the flange thickness or required flange range, thread requirement, application and required finish in addition to “3/8”.

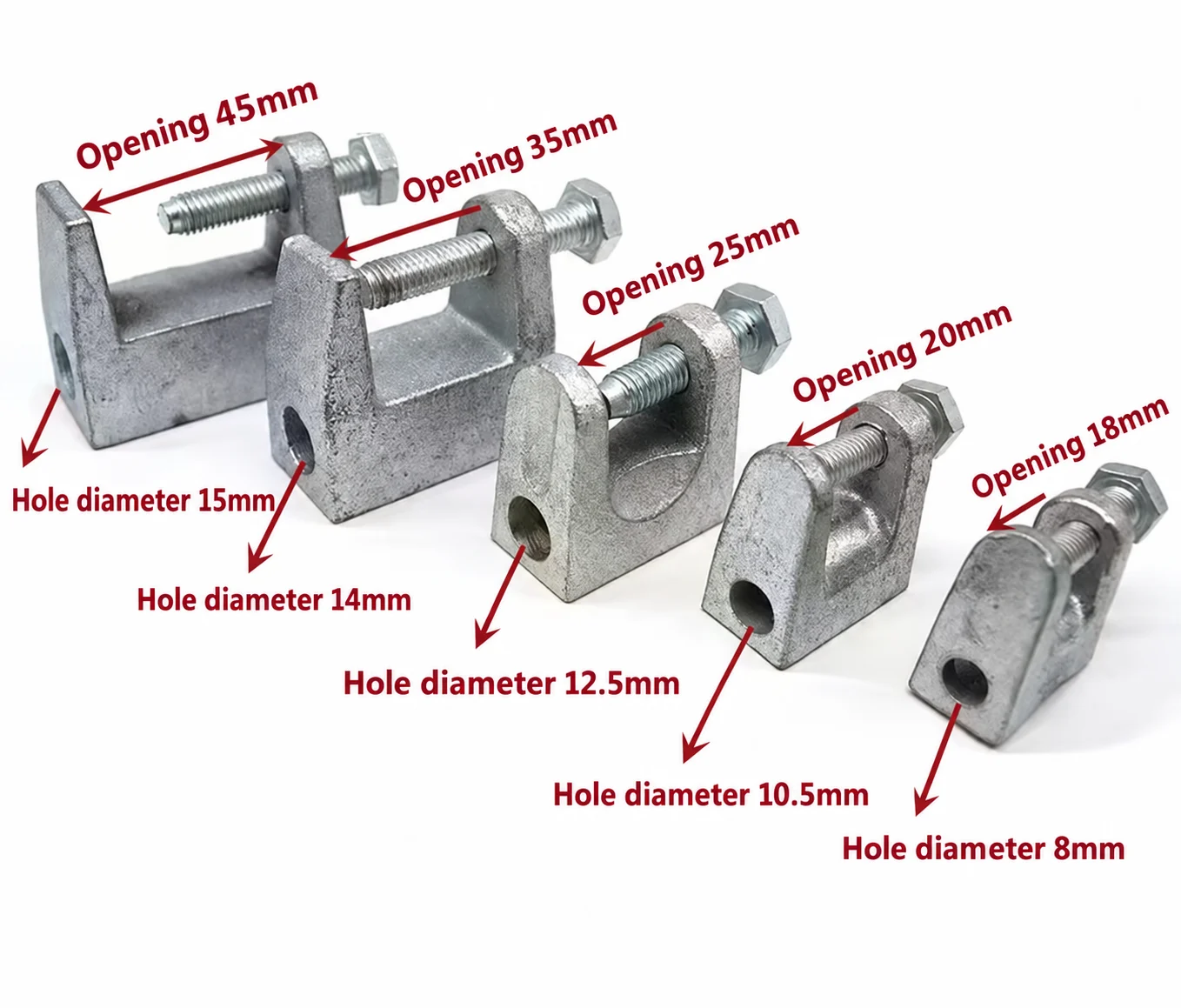

Why Flange Thickness and Jaw Opening Matter
The clamp must have a suitable jaw opening and clamping range for the steel beam flange. If the flange is too thick, the selected clamp may not fit correctly. If the clamp is much larger than the application requires, the assembly may not match the specified connection arrangement.
When sourcing a beam clamp 3/8 model, send the actual beam flange thickness together with the threaded-rod size. This gives a manufacturer much more useful information than a nominal clamp size alone.
What Is a Strut Beam Clamp?
A strut beam clamp creates an attachment point between a structural steel member and a strut, threaded rod or related support system. Buyers may search for strut beam clamp, strut clamp, steel strut beam clamp, galvanized strut beam clamp or beam clamp for strut channel.
Those terms can describe different designs. A quotation request should state the connection method, threaded-rod size, flange thickness and required dimensions. If a project requires a named brand, part number or approved equivalent, state that requirement clearly rather than relying on a search phrase.
Beam Clamp Thread Size
Thread size is another important specification. One project may require a 3/8-inch threaded connection while another uses metric rod. Never infer the thread standard from the product appearance.
For an international quotation, specify whether you need metric or inch thread, the thread diameter and pitch, and the threaded-rod size. This avoids fit problems between the clamp and the suspension hardware.
Beam Clamp Surface Finish
Surface treatment should be confirmed before ordering. Electro-galvanized and hot-dip galvanized finishes may be appropriate for different product designs and application requirements. The right choice depends on whether the installation is indoor or outdoor, the humidity or corrosive environment, and the project specification.
A silver or zinc-coloured product photo does not establish the required coating. Write the required finish clearly in the RFQ.
Why Similar Beam Clamps Can Have Different Prices
Two beam clamps can look almost identical and still have different prices because of their material, unit weight, body dimensions, thread detail, jaw opening, manufacturing process, surface treatment, inspection requirements, packaging and order quantity.
A lower quotation does not automatically represent the same product at a lower cost. Before comparing prices from beam clamp manufacturers in China, confirm that every supplier is quoting against the same specification.
Product Photo vs. Product Specification
A product photo is useful for identifying a general design, but it is not always enough for manufacturing. It may not show exact dimensions, thread specification, material, flange range, jaw opening, coating, allowable application load or critical tolerances.
For preliminary identification, clear photos are helpful. For an accurate quotation and production confirmation, a drawing, dimensional information or approved specification is better.
What to Send for a Beam Clamp Quotation
Send as much of the following information as possible:
- Beam clamp type, product drawing or clear photos
- Threaded-rod size and thread specification
- Beam flange thickness and required jaw opening
- Critical dimensions, material and required surface finish
- Allowable load required for the intended support application
- Quantity for each size, packaging requirements and destination port
If you only have a sample, photos and measurements can support a preliminary evaluation. Confirm final specifications clearly before production begins.

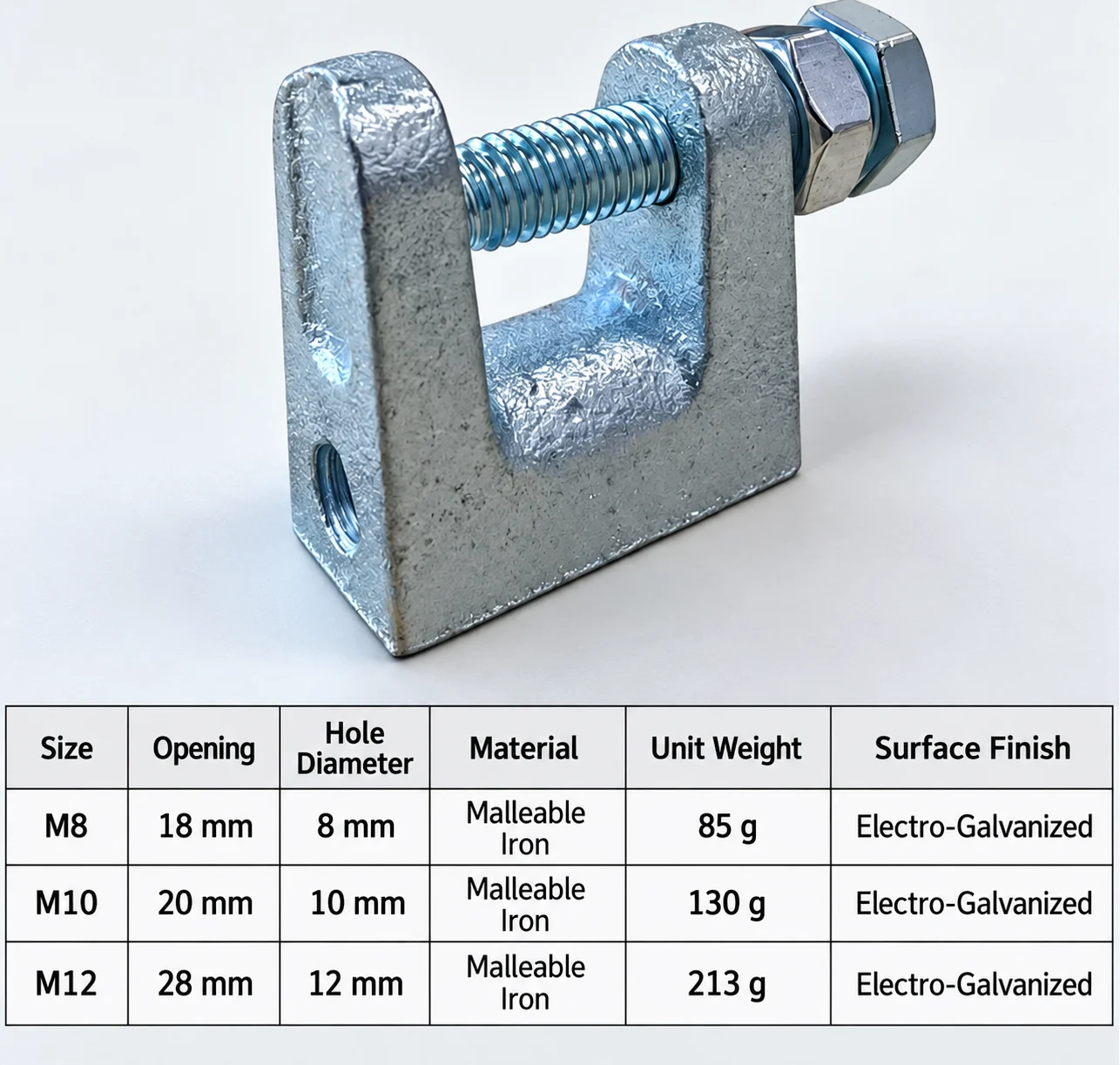

Malleable Iron Beam Clamp Buying Points
Malleable iron beam clamps are widely used in support and suspension systems. When sourcing one, look beyond the nominal thread size: check casting quality, body dimensions, thread quality, jaw opening, flange range, fastener fit, surface treatment and application requirements. A good purchasing specification lets you compare manufacturers on the same basis.
3/8 Beam Clamp Purchasing Checklist
- 3/8-inch thread and thread pitch confirmed
- Beam flange thickness and jaw opening confirmed
- Clamp dimensions, material and surface finish confirmed
- Support application and its load requirement confirmed
- Quantity, packaging and destination port confirmed
Pipe, HVAC and Electrical Support Applications
Beam clamps are commonly associated with support systems for pipes, HVAC components, electrical installations, conduit and cable management. Projects can have different installation and performance requirements, so the clamp should be selected for the stated support application and project specification.
The products discussed here are structural support and suspension products. They should not automatically be considered suitable for overhead lifting.
Beam Clamp Manufacturer in Handan, Hebei, China
Y.F METAL manufactures malleable iron beam clamps and works with standard and customized beam clamp requirements for international buyers. Our capabilities include casting, machining and surface treatment. For steel beam clamps, 3/8 beam clamps, strut beam clamps, wide-mouth beam clamps and pipe-hanger beam clamps, confirm the technical requirements before comparing quotations.
Looking for a beam clamp supplier in China? Contact Y.F METAL with a product photo or drawing, required size, thread specification, flange thickness, material, surface finish, quantity, packaging requirement and destination port. We will review the important specifications before quotation.
Frequently Asked Questions
What is a 3/8 beam clamp?
A 3/8 beam clamp commonly refers to a clamp with a 3/8-inch threaded connection. Confirm the thread detail, flange thickness, jaw opening, material and intended support application as well.
Is beam clamp 3/8 the same as 3/8 beam clamp?
The two phrases generally represent the same search intent. The product specification still needs to be confirmed before ordering.
What is a steel beam clamp?
A steel beam clamp is a beam attachment made from steel, often by a forming or stamping process. It differs from a malleable iron beam clamp in material and manufacturing method.
How do I choose the correct beam clamp size?
Start with the threaded-rod size, beam flange thickness, required jaw opening and intended support application. Then confirm material, surface finish and the required load rating for that application.
Can beam clamps be used for overhead lifting?
The beam clamps described in this guide are intended for structural support and suspension. Do not treat them as overhead lifting clamps unless a product is specifically designed, rated and approved for that purpose.
