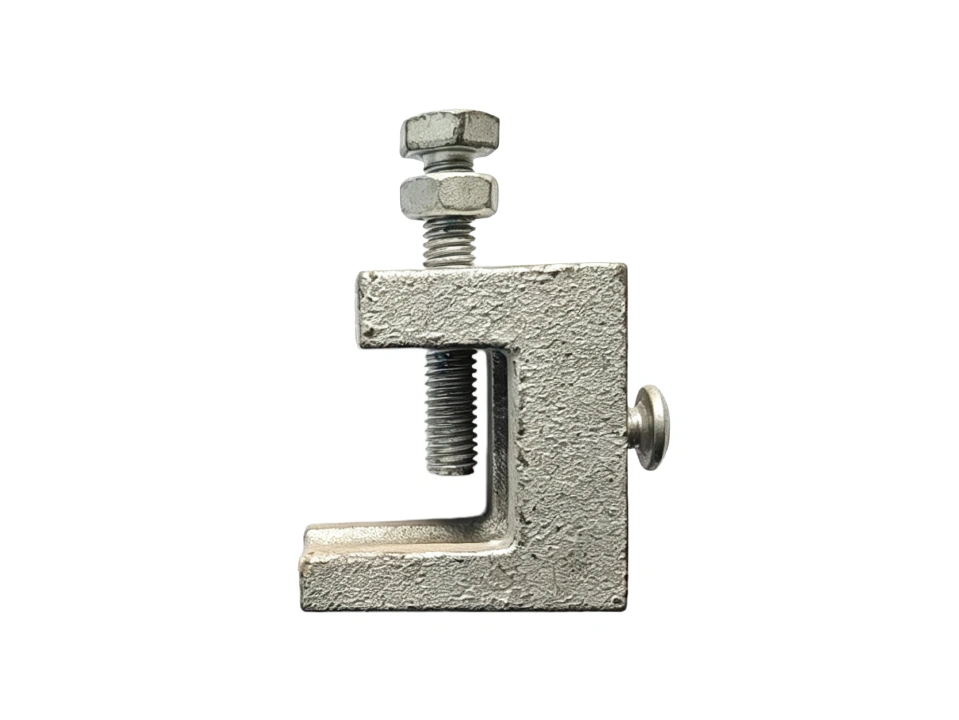

Malleable Cast Iron Beam Clamp with Side Lock Screw
Malleable cast iron beam clamp with side lock screw for steel suspension and support systems. Side positioning screw improves installation stability; electro-galvanized mechanical clamping without welding or drilling—ideal for pipe supports, cable tray, threaded-rod systems and equipment mounting on I-beam, H-beam and channel flanges.
Request a Quote1. Product Overview
The malleable cast iron beam clamp with side lock screw is a mechanical clamping connector for steel structure installation. It is precision cast from quality malleable iron with full electro-galvanized finish, delivering strong mechanical performance, corrosion resistance and long service life.
Compared with standard beam clamps, this model adds an auxiliary side positioning screw on the body to improve positioning stability during installation and reduce shift or drift while mounting. It provides a reliable fixed connection for pipe supports, cable tray, threaded-rod systems and other suspended equipment.
Installation is purely mechanical—no welding or drilling required. The clamp attaches directly to I-beam, H-section and channel flanges, protecting the original steelwork while speeding up field work.
2. Product Features
- Side lock positioning design: Side positioning screw assists in holding the clamp location for improved installation stability—suited to applications requiring precise alignment.
- Quality malleable iron construction: High-strength malleable iron casting with good toughness, impact resistance and load capacity—resists cracking and deformation.
- High-strength clamping structure: Top set screw and body form reliable grip on the flange for stable connection under load.
- Anti-loosening lock nut: Top lock nut combined with side positioning helps reduce bolt loosening risk in vibration environments.
- Electro-galvanized corrosion protection: Full zinc plating resists rust and oxidation for indoor and general industrial use.
- Fast installation: No welding, cutting or drilling; quick to install, remove and reuse.
3. Product Advantages
- One-piece malleable iron casting—durable and dependable
- Side lock positioning improves installation stability
- Electro-galvanized finish with excellent corrosion resistance
- No welding or drilling required
- Quick installation saves construction time
- Removable and reusable
- Suitable for diverse structural steel projects
4. Application Scenarios
This beam clamp serves steel-framed buildings and industrial installation projects as a key connection point for suspension and support systems.
- Building MEP engineering: Fire sprinkler systems, HVAC ductwork, plumbing lines and integrated utility runs.
- Electrical installation: Cable tray, cable channel, conduit support and industrial lighting systems.
- Steel-framed buildings: Industrial plants, warehousing and logistics centers, commercial complexes, steel platforms and mezzanines.
- Industrial facilities: Pipe support frames, threaded-rod fixing systems, signage mounting and ventilation equipment support.
5. Technical Specifications
| Product Name | Malleable Cast Iron Beam Clamp with Side Lock Screw |
|---|---|
| Body Material | Malleable cast iron |
| Surface Finish | Electro-galvanized |
| Fastening | Top set screw + lock nut + side positioning screw |
| Installation | Mechanical clamping |
| Compatible Steel | I-beam, H-beam, channel and similar structural flanges |
| Size Range | Multiple sizes available |
| Customization | OEM / ODM supported |
| Reusable | Yes |
6. Why Choose Y.F METAL
- Workshop production in Handan with hands-on quality checks
- Precision casting for consistent dimensions
- Strict quality inspection for reliable performance
- Multiple sizes and custom specifications available
- Export-focused since 2023, building on decades of domestic manufacturing
- Project-based certification and test reports available upon request
- Professional technical and after-sales support
